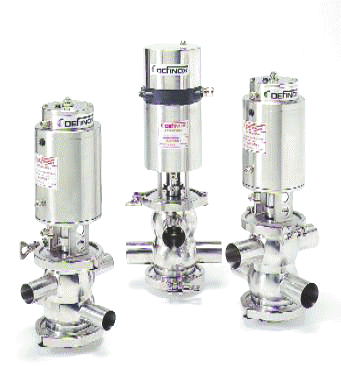

Definox Sanitary Double Block and Bleed Valves



Bay Port Valve & Fitting is an authorized distributor of Definox sanitary double block and bleed valves.  These high tech double block and bleed valves (VDCI) have two independent plugs which meet the most stringent use criteria for sanitary applications

Valve Features:

- An extra-thick body of the actuator and the valve, ensuring a good resistance to mechanical and
   thermal distortions
- Possibility to actuate the two plugs independently and to clean the chamber area, plugs closed,
   because of double-wall leak detection channel.
- Partial balancing of the pressure under the lower plug with counterbalanced piston
- PFA seals ensure a complete sealing at high temperature and a good resistance to aggressive
   products
- The design of the VDCI allows the releasing pressure to atmosphere without any risk of mixing
   between the two ports of the valve, in case of pressure surges in excess of 150 PSI under the
   lower ring
- Optional O ring seals for non-leaking during atmospheric break
- PMO version available

Valve Specifications:

Sizes:
1.5" - 2" - 2.5" - 3" - 4" - 5" - 6"



Material:
- Body: 316L stainless steel
- Shut off unit: 316 L stainless steel
- Actuator: 304 stainless steel
- Plug Seal: PFA
- Stem Seal: Viton



Options:
- Modular break-away actuator to allow the lifting of the lower plug.
- Signal back equipment on the top of the actuator.
- Sterilization of the stem and of the counterbalance through upper and lower guide bearings.



Surface finish:
- External RA = 150 Grit, 35 RA
- Internal RA = 180 Grit, 25 RA
